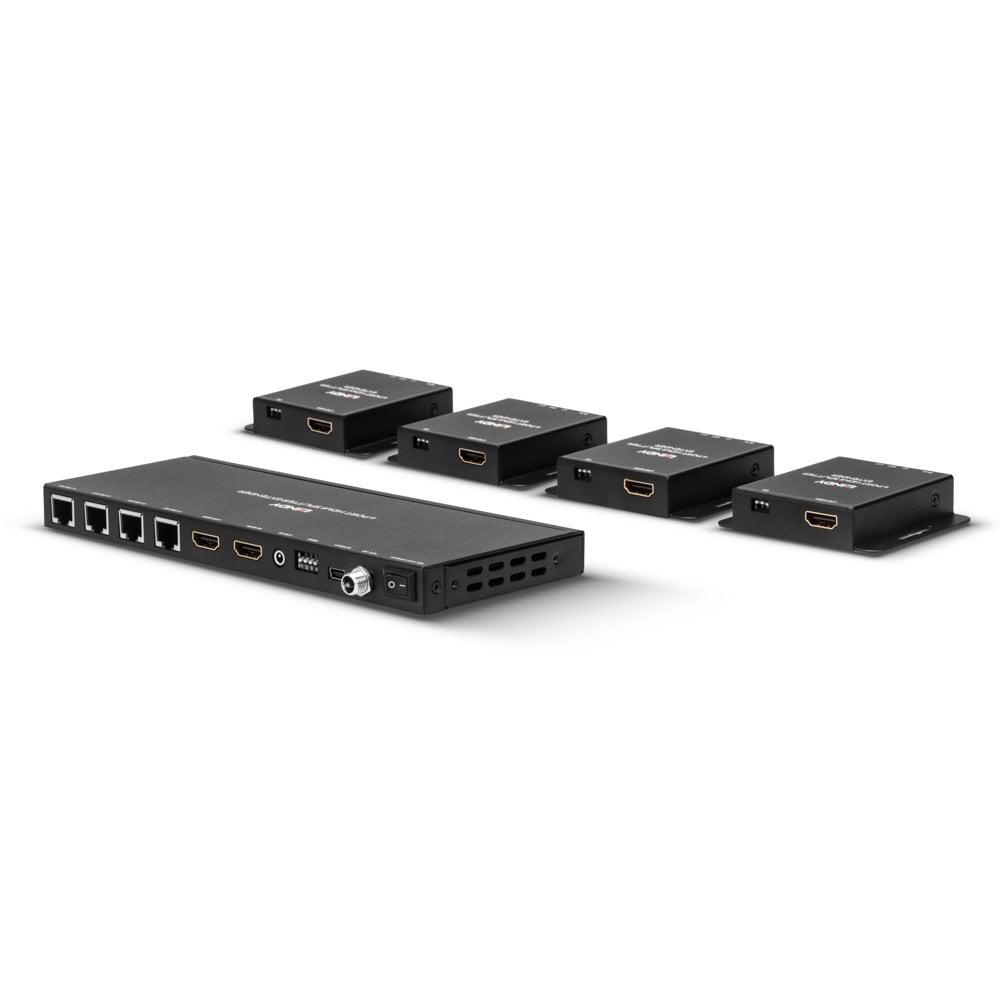

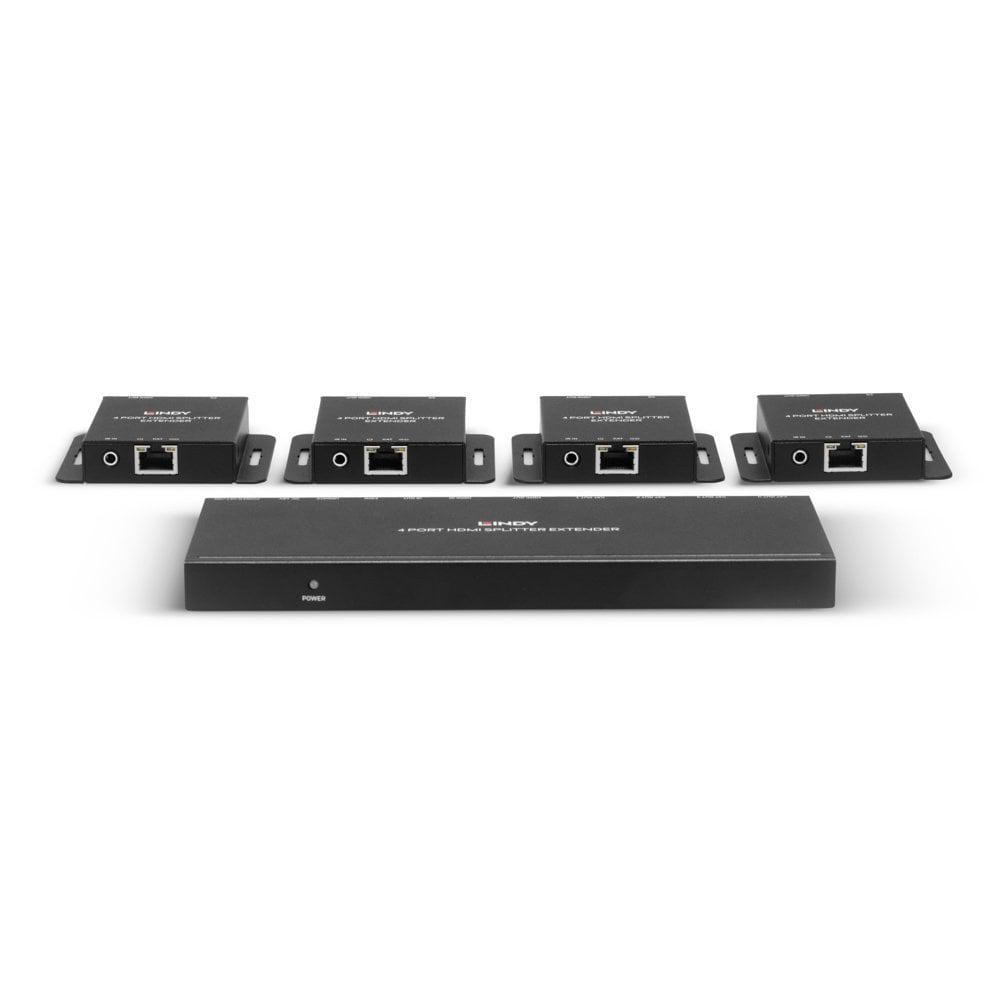

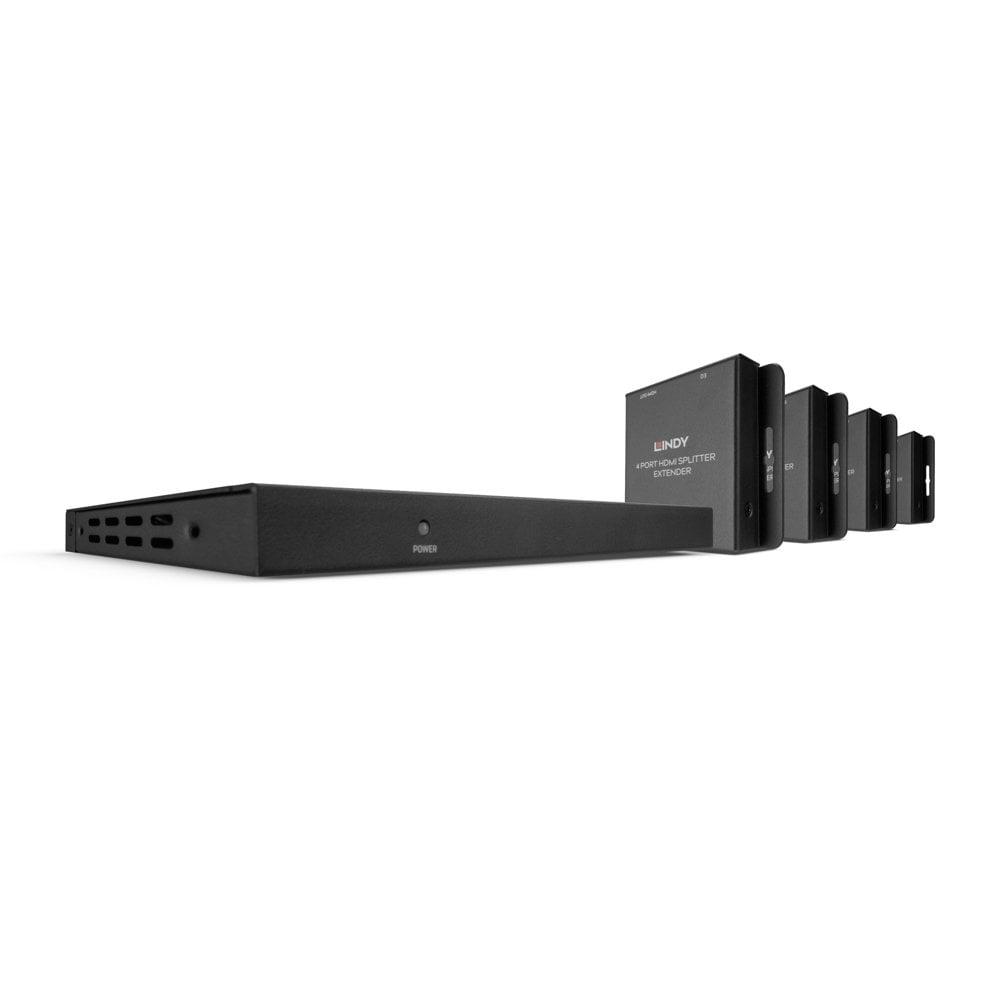

Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender with Loop Out Description An advanced Splitter Extender that extends and distributes HDMI & IR signals to 4 displays at distances of up to 50m Supports resolutions up to Full HD 1920x1080 @60Hz 4:4:4 8bit, including 3D Features a loop-through HDMI output on the transmitter for local monitoring/cascading Supports power over Cable (PoC), only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.3 Supported Bandwidth: 4.95 Gbps Maximum Distance: 50m (164.04ft) - 1920x1080@60Hz 4:4:4 8bit Cat.6 Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit HDCP Support: HDCP 1.2 EDID Pass Through: Preset, Cloning Function Supported Audio: Up to 7.1 (Pass-through) IR Support: 20-60 kHz CEC Support: - Transmission Medium: 1 x Cat.6 (per receiver) Special Features: PoC (Power over Cable Cable) Connectors Transmitter Input: HDMI (Female) Transmitter Output: 4 x RJ45 (Female), HDMI (Female), IR (Female) Receiver Input: RJ45 (Female), IR (Female) Receiver Ouput: HDMI (Female) Power: 5.5/2.1mm DC Socket Physical Properties Dimensions WxHxD: Transmitter: 210x83x17mm (8,27x3,27x0,67in) Receivers: 79x68x17mm (3,11x2,68x0,67in) (per unit) Housing Material: Metal Nett Weight: Transmitter: 0.443kg (0.98lb) Receiver: 0.131kg (0.29lb) per unit Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 12VDC 2.5A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 310x162x74mm (12.21x6.38x2.91in) Gross Weight: 1.516kg (3.34lb) Warranty (Years): 2 Certificated: CE, FCC, REACH and RoHS Package Contents Splitter transmitter unit 4 x Receiver unit IR emitter cable 4 x IR receiver cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy manual https://www.lindy-international.com/50m-Cat-6-4-Port-HDMI-IR-Splitter- Extender-with-Loop-Out.htm?websale8=ld0101.ld021102&pi=38155 &ci=20
Specifications
- Tip accesoriu: extender
- Tip conector 1: HDMI (M) , RJ-45 (M)
- Tip conector 2: HDMI (M) , RJ-45 (M) x 4
- Conectori auriti: nu
- Conector in unghi de 90 grade: nu
- Rezolutie maxima: Full HD+ (1920 x 1200) la 60 Hz
- Lungime (m): 50 - 79.99 m
- Calitate premium: nu
- Culoare: negru
- Lungime cablu: 50 m
