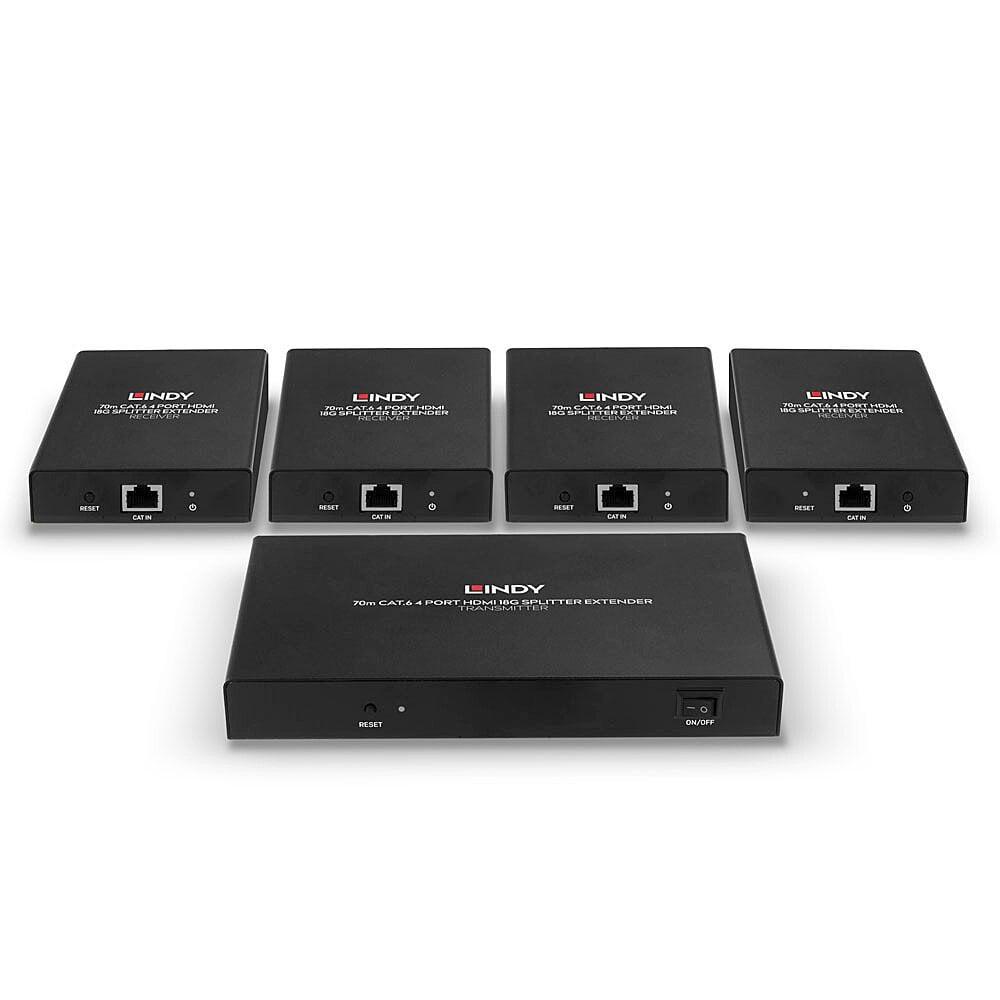

Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender Description Distribute 4K HDMI signals to up to 4 displays in multiple locations Supports resolutions up to 4K@60Hz, with additional support for HDR Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 70m (229.66ft) Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID management: Preset Supported Audio: LPCM 2CH Separate Audio Ports: – IR Support: 20-60KHz CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: GSV2006 & GSV5100 Special Features: PoC (Power over Cable) Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: – Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09×4.06×0.91in) , Receiver: 100x88x23mm (3.94×3.46×0.91in) Housing Material: Metal Net Weight: Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb) Operating Temperature: 0°C – 50°C (32°F – 122°F) Storage Temperature: -10°C – 80°C (14°F – 176°F) Humidity: 5 – 90% RH (non-condensing) Power Requirements: 12VDC 2A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 423x60x354mm (16.65×2.36×13.94in) Gross Weight: 2kg (4.41lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Propositon 65 Package Contents 70m Cat.6 4 Port HDMI 4K60 Splitter Extender 4 x Cat.6 HDMI Receivers IR Emitter Cable, 1.2m 4 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 8 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38262 EAN: 4002888382625 https://www.lindy-international.com/70m-Cat-6-4-Port-HDMI-4K60-Splitter- Extender-.htm?websale8=ld0101.ld021102&pi=38262&ci=10
Specifications
- Tip accesoriu: cablu or adaptor splitter video
- Tip conector 1: HDMI (M) , RJ-45 (M) , Jack 3.5mm (M)
- Tip conector 2: HDMI (M) , RJ-45 (M) , Jack 3.5mm (M)
- Conectori auriti: nu
- Conector in unghi de 90 grade: nu
- Rezolutie maxima: 4K UHD (3840 x 2160) la 60 Hz
- Lungime (m): nu e cazul
- Calitate premium: da
- Culoare: negru
