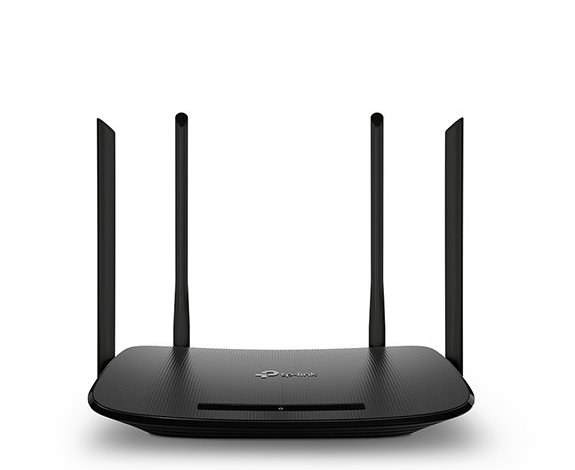

Archer VR300
Popis
*Parental Controls: manage responsible internet access for your children
*Guest Network|: provides separate access for guests while securing the home network
*Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
*Quality of Service: prioritizes network traffic by device or application
*IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
*IPv6: compatible with IPv6 (Internet Protocol version 6)
*Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
Technická specifikace
HARDWARE FEATURES
Interface
*3 10/100 RJ45 LAN Ports
*1 10/100 RJ45 LAN/WAN Port
*1 RJ11 Port
Button
*WPS Button
*Power On/Off Button
*Reset Button
Power Supply
*12VDC/1A
VDSL2 Standards
*ITU G.993.2, Up to 17a pro¬le (POTS)
*ITU-T G.993.5 (G.vector)
*ITU-T G.998.4 (G.INP)
ADSL Standards
*Full-rate ANSI T1.413 Issue 2,
*ITU-T G.992.1(G.DMT),
*ITU-T G.992.2(G.Lite),
*ITU-T G.994.1 (G.hs),
*ITU-T G.995.1
ADSL2 Standards
*ITU-T G.992.3 (G.DMT.bis),
*ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards
*ITU-T G.992.5
Dimensions ( W x D x H )
*385*290*76mm
Antenna Type
*4 fixed external antennas
WIRELESS FEATURES
Wireless Standards
*IEEE 802.11a/n/ac 5GHz,
*IEEE 802.11b/g/n 2.4GHz
Wireless Speeds
*867Mbps at 5GHz
*300Mbps at 2.4GHz
Transmit Power
*2.4GHz <20dBm(EIRP)
*5GHz <23dBm(EIRP)
Wireless Functions
*Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable
Wireless Security
*WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)
SOFTWARE FEATURES
Quality of Service
*ATM QoS, Bandwidth Control
Security
*NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes
*VDSL/ADSL Modem Router, Wireless Router
Management
*Web Based Con¬guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
*Upgrade, Diagnostic Tools
DHCP
*Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding
*Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS
*DynDns, NO-IP
VPN Pass-Through
*PPTP, L2TP, IPSec Passthrough
Protocols
*Supports IPv4 and IPv6
ATM/PPP Protocols
*ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions
*Parental Control, Network Address Translation(NAT),
*Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
*DDNS, IGMP V1/V2/V3
Guest Network
*2.4GHz guest network, 5GHz guest network
OTHERS
Certification
CE, RoHS, RCM
Package Contents ·
*AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
*External Splitter
*RJ11 DSL Cable
*RJ45 Ethernet Cable
*Power Adapter
*Quick Installation Guide
System Requirements
*Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
*Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
*Subscription with an Internet Service Provider (for Internet access)
Environment
*Operating Temperature: 0?~40? (32? ~104?)
*Storage Temperature: -40?~70? (-40? ~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
