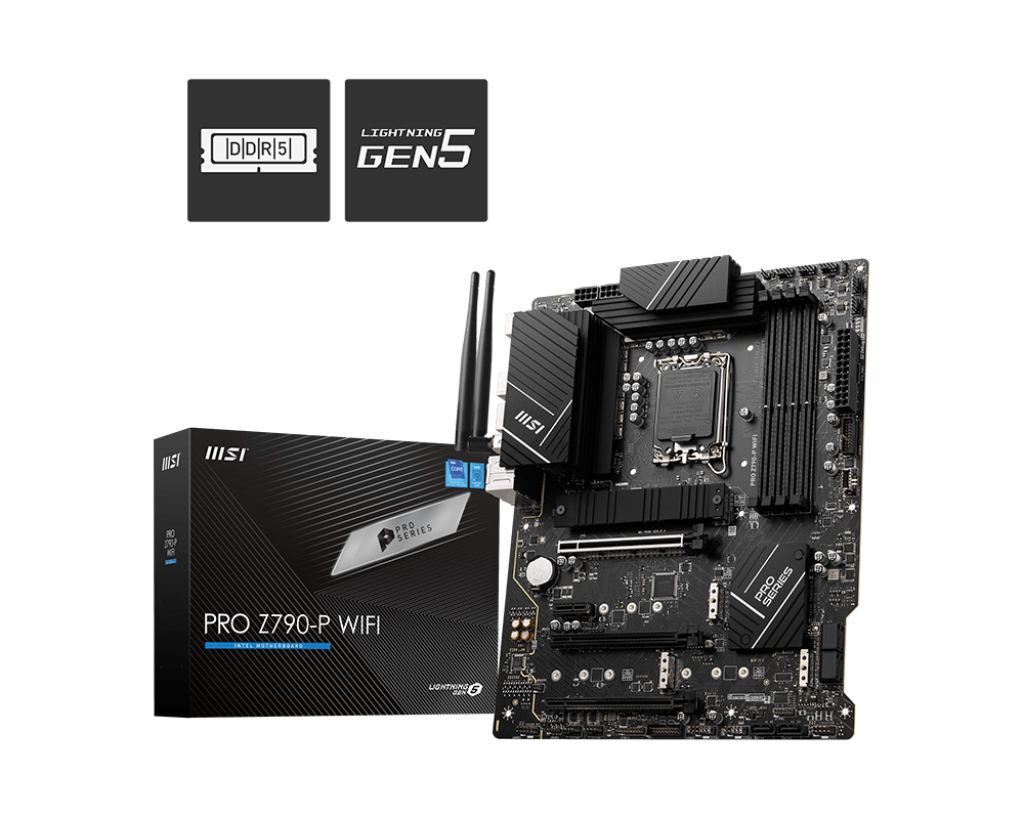

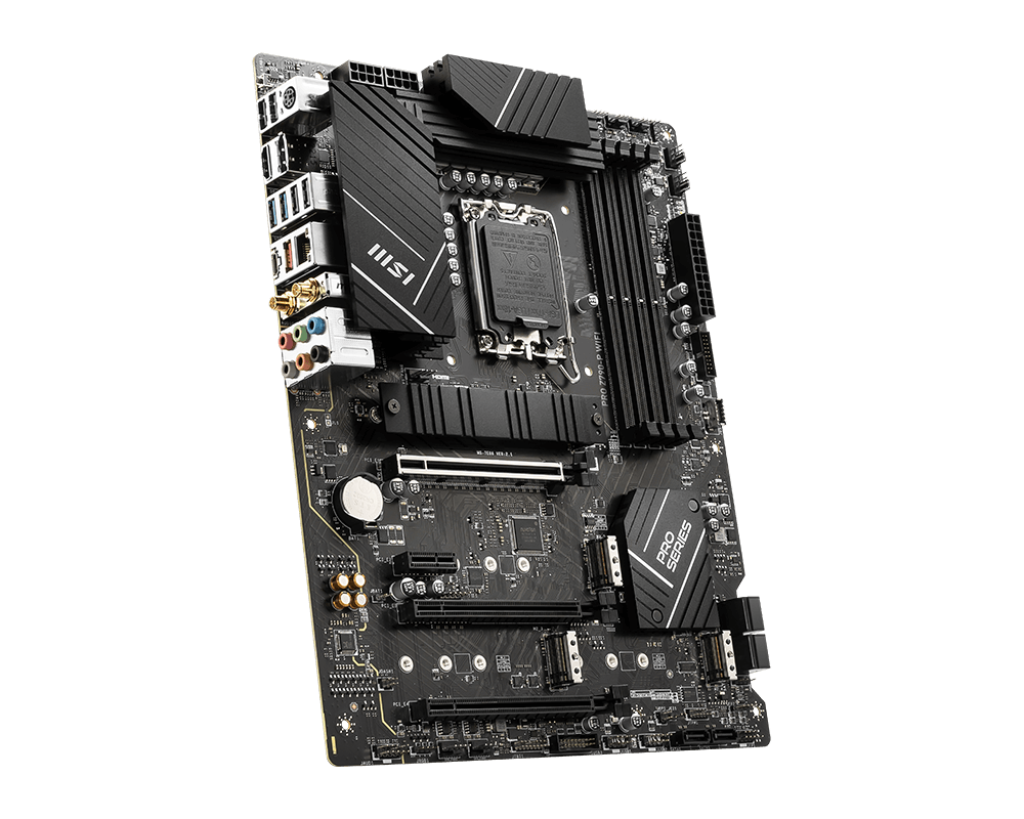

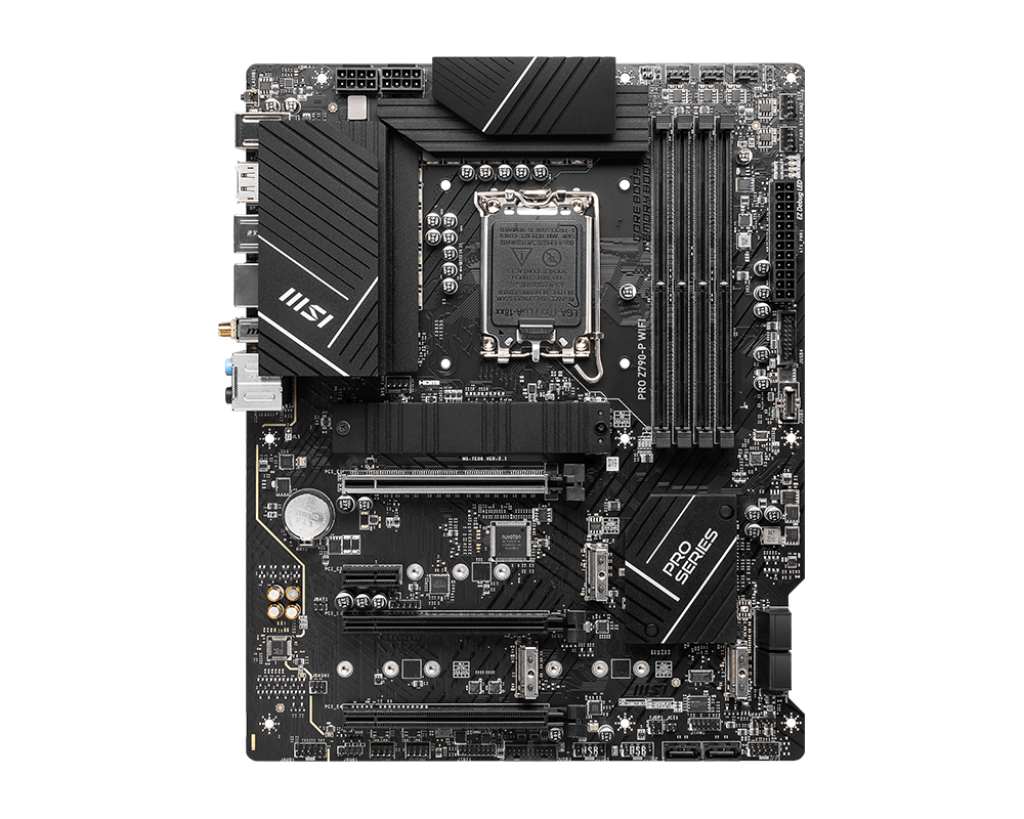

Placa de baza MSI PRO Z790-P LGA 1700 WIFI SPECIFICATIONS Model Name PRO Z790-P WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x1 slots Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7000+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 6x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2×2 20G (1 Type-C), 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C), 6x USB 3.2 Gen 1 5Gbps (6 Type-A), 8x USB 2.0 LAN Intel® 2.5G LAN WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
Specifications
- CPU Socket: LGA 1700
- Format: ATX
- Chipset: Intel Z790
- Tip memorie: DDR5
- Sloturi memorie: 4
- Capacitate maxima memorie RAM (GB): 128 GB
- Frecventa memorie (MHz): 5600 , 5400 , 5200 , 5000 , 4800
- Video integrat: Necesita CPU cu Intel HD Graphics
- LAN integrat: 10/100/1000/2500 Mbps
- Sloturi S-ATA 3: 6
- Sloturi M.2: 4
- Sloturi PCI-E x1: 1
- Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 5.0 x 16 x 1 , PCI-E 4.0 x 4 x 1 , PCI-E 3.0 x 1 x 2

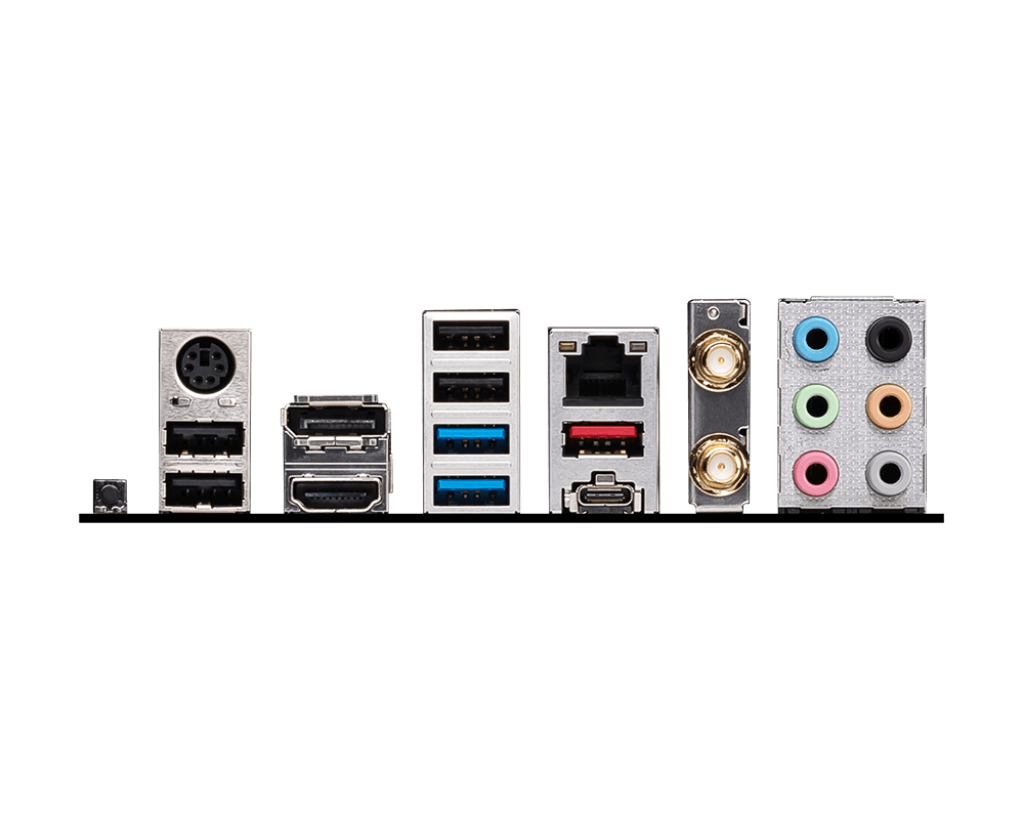

- Porturi video: Display Port , HDMI
- Iesire audio: 7.1
- Porturi USB 2.0, 3.0, 3.1 Type A, 3.1 Type-C: USB 3.2 gen 2 x 1 , USB 3.2 gen 2 Type-C x 2 , USB 3.2 gen 1 x 6 , USB 2.0 x 8
