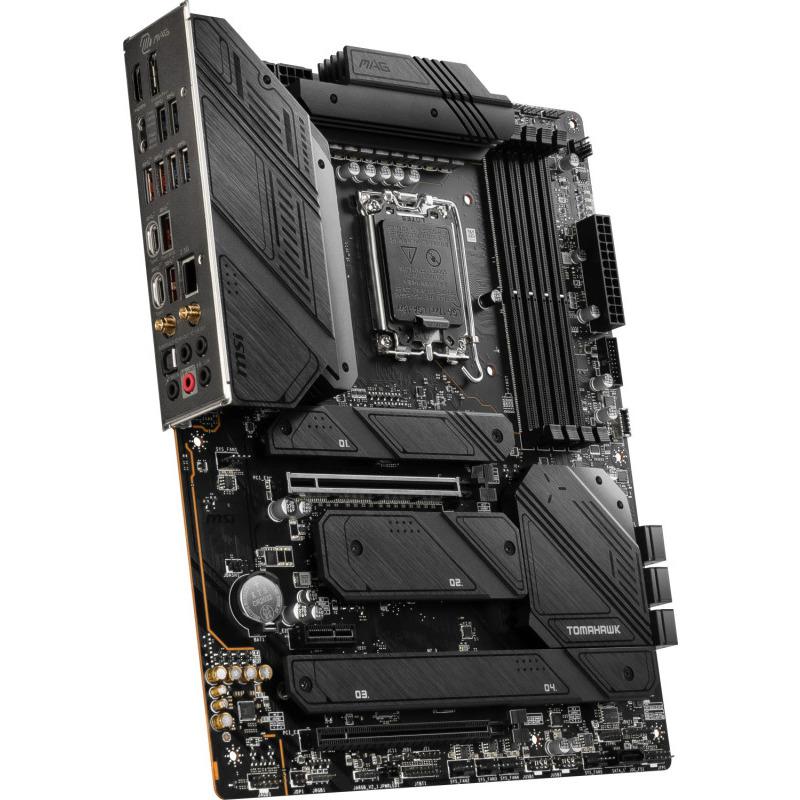

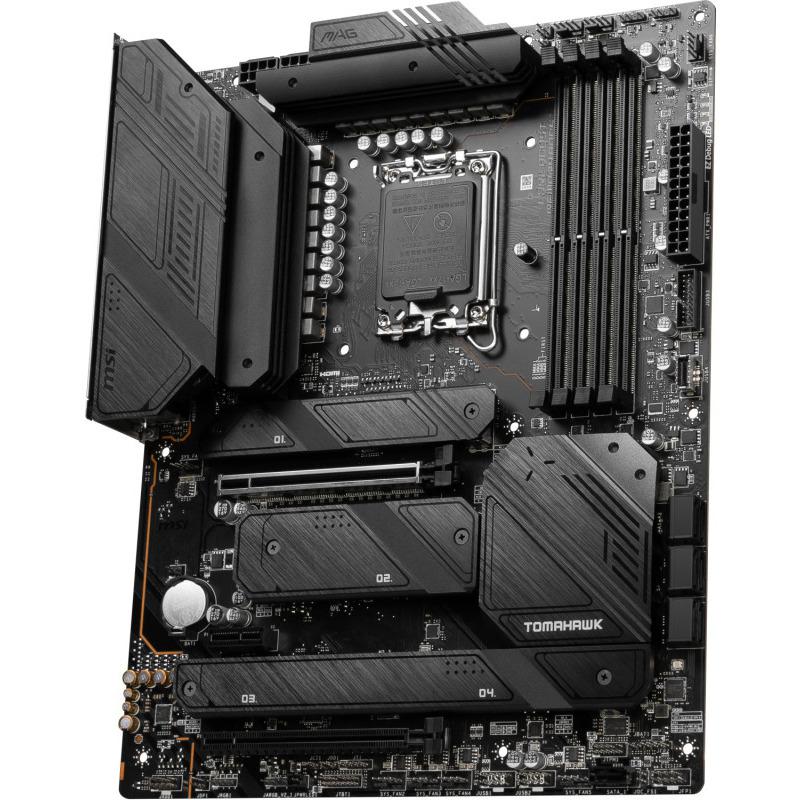

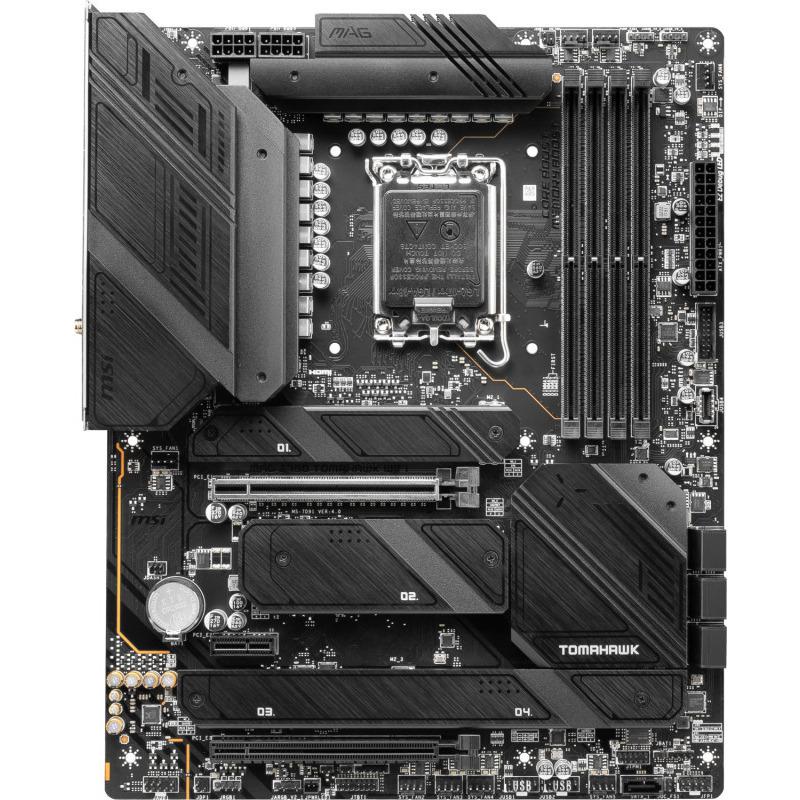

Placa de baza MSI MAG Z790 TOMAHAWK WIFI, Socket 1700

Placa de baza MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA 1700 SPECIFICATIONS Model Name MAG Z790 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 7x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2×2 20Gbps (Type-C), 6x USB 3.2 Gen 2 10Gbps (4 Type-A + 2 Type-C), 6x USB 3.2 Gen 1 5Gbps (Type-A), 4x USB 2.0 LAN 1x Intel® 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bleutooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5

Specifications

• CPU Socket: LGA 1700
• Format: ATX
• Chipset: Intel Z790
• Tip memorie: DDR5
• Sloturi memorie: 4
• Capacitate maxima memorie RAM (GB): 128 GB
• Frecventa memorie (MHz): 5600 , 5400 , 5200 , 5000 , 4800
• Video integrat: Necesita CPU cu Intel HD Graphics
• LAN integrat: 10/100/1000/2500 Mbps
• Sloturi S-ATA 3: 7
• Sloturi M.2: 4
• Sloturi PCI-E x1: 1
• Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 5.0 x 16 x 1 , PCI-E 4.0 x 4 x 1 , PCI-E 3.0 x 1 x 1
• Porturi video: Display Port , HDMI
• Iesire audio: 7.1

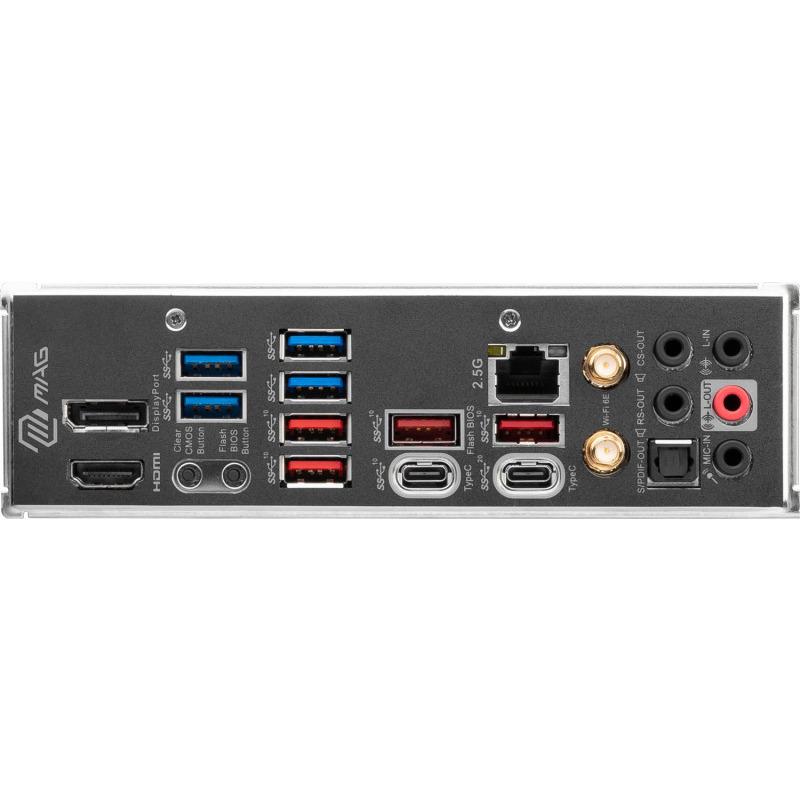

• Porturi USB 2.0, 3.0, 3.1 Type A, 3.1 Type-C: USB 3.2 gen 2 x 4 , USB 3.2 gen 2 Type-C x 3 , USB 3.2 gen 1 x 6 , USB 2.0 x 4
