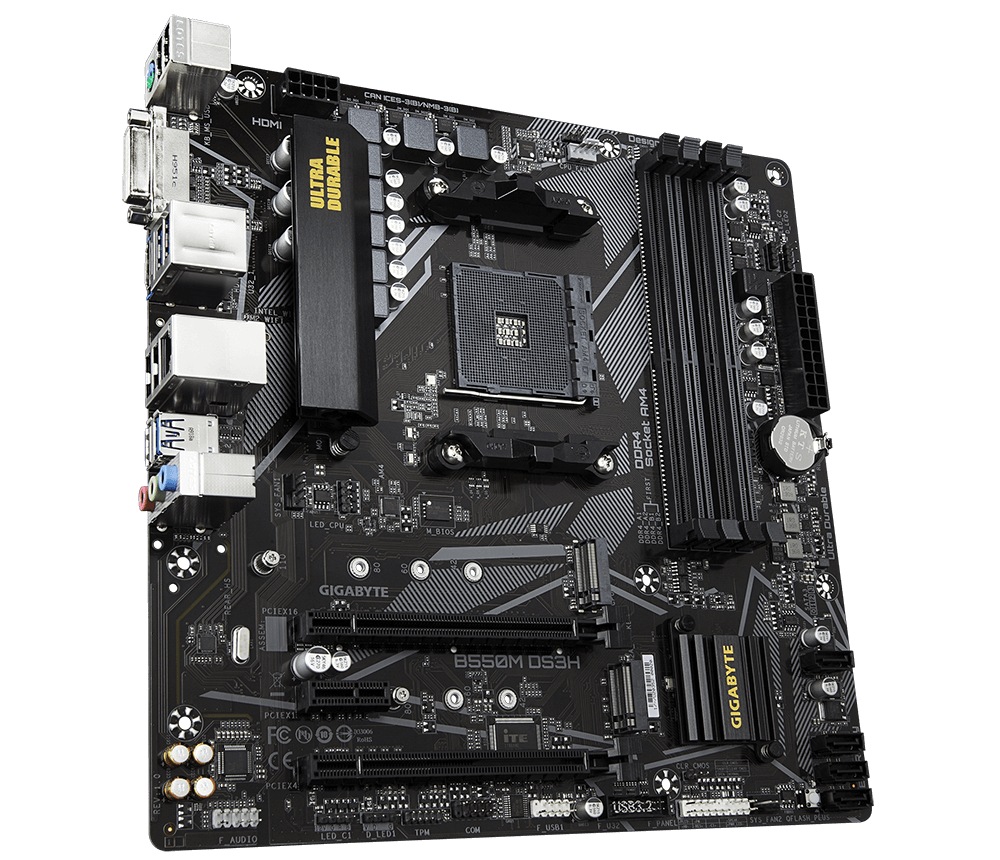

Placa de baza Gigabyte B550M DS3H AM4 CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer „CPU Support List” for more information.) Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer „Memory Support List” for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel https://www.gigabyte.com/Motherboard/B550M-DS3H-rev-10/sp#sp
Specifications
- CPU Socket: AM4
- Format: mATX
- Chipset: AMD B550
- Tip memorie: DDR4
- Sloturi memorie: 4
- Capacitate maxima memorie RAM (GB): 128 GB
- Frecventa memorie (MHz): 3200 , 2933 , 2667 , 2400 , 2133
- Video integrat: Necesita CPU cu AMD Radeon Vega
- LAN integrat: 10/100/1000 Mbps
- Sloturi S-ATA 3: 4
- Sloturi M.2: 2
- Sloturi PCI-E x1: 1
- Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 4.0 x 16 x 1 , PCI-E 3.0 x 4 x 1

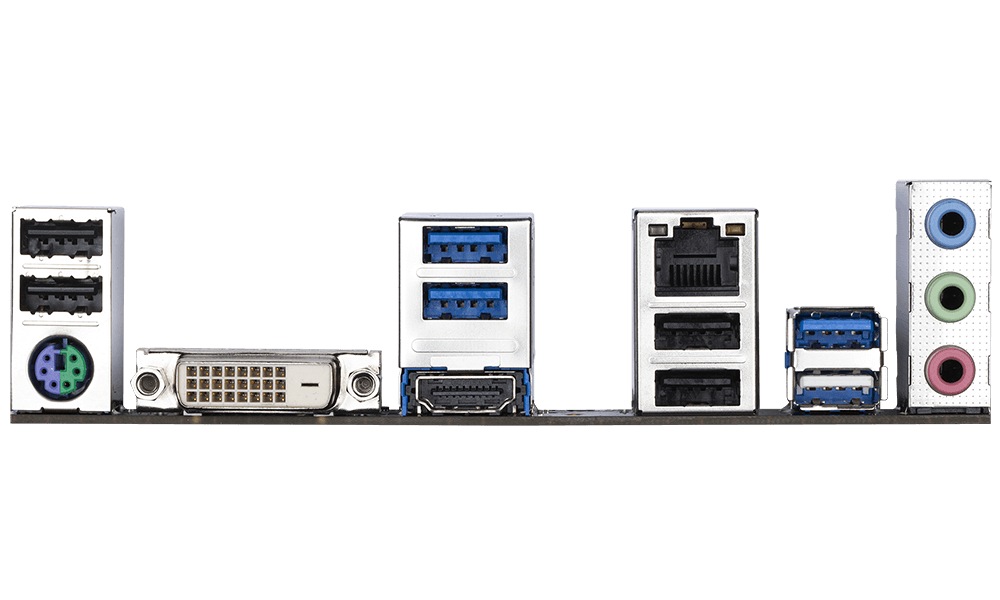

- Porturi video: Display Port , HDMI , DVI-D
- Iesire audio: 7.1
- Alte atribute: USB 2.0 x 4 , USB 3.2 gen 1 Type A x 4
