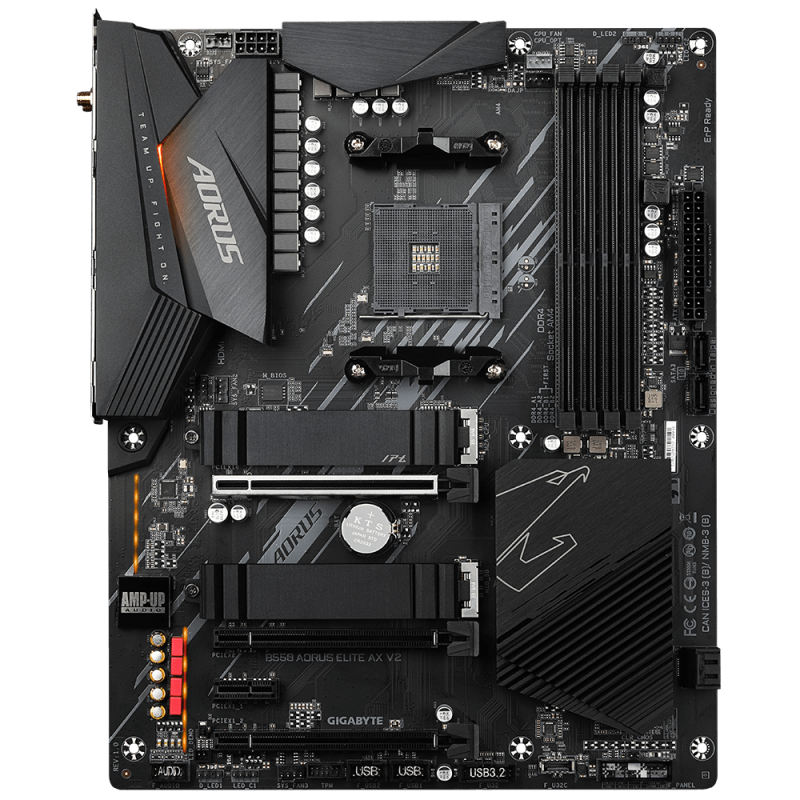

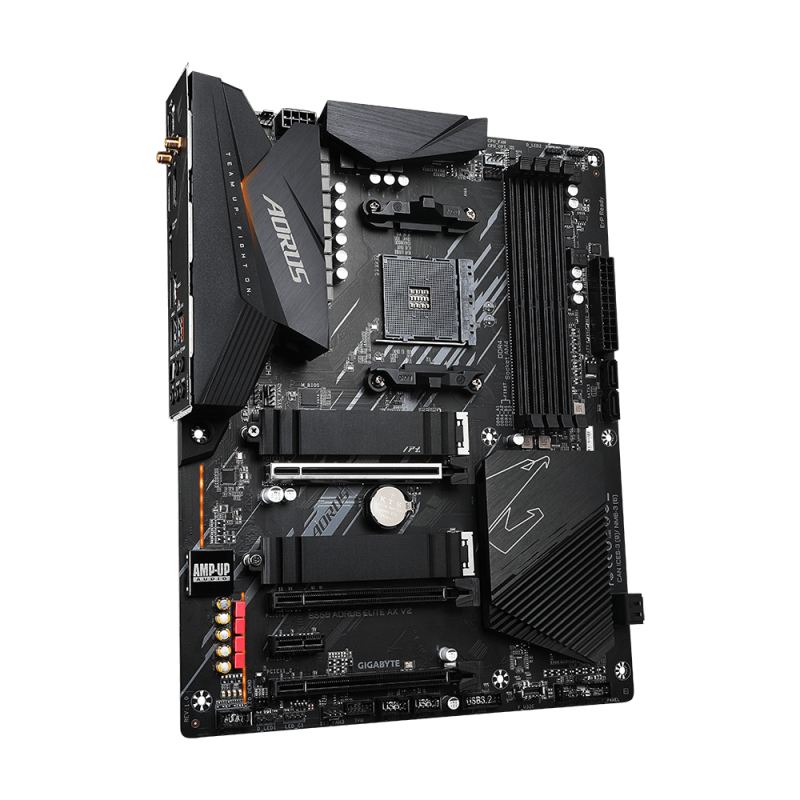

Placa de baza Gigabyte B550 AORUS ELITE AX V2 AM4 / B550 AORUS ELITE AX V2 AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/sp#sp
Specifications
- CPU Socket: AM4
- Format: ATX
- Chipset: AMD B550
- Tip memorie: DDR4
- Sloturi memorie: 4
- Capacitate maxima memorie RAM (GB): 128 GB
- Frecventa memorie (MHz): 2933 , 2666 , 2400 , 2133
- Video integrat: Necesita CPU cu AMD Radeon Vega
- LAN integrat: 10/100/1000/2500 Mbps
- Sloturi S-ATA 3: 4
- Sloturi M.2: 2
- Sloturi PCI-E x1: 3
- Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 4.0 x 16 x 1 , PCI-E 3.0 x 4 x 3

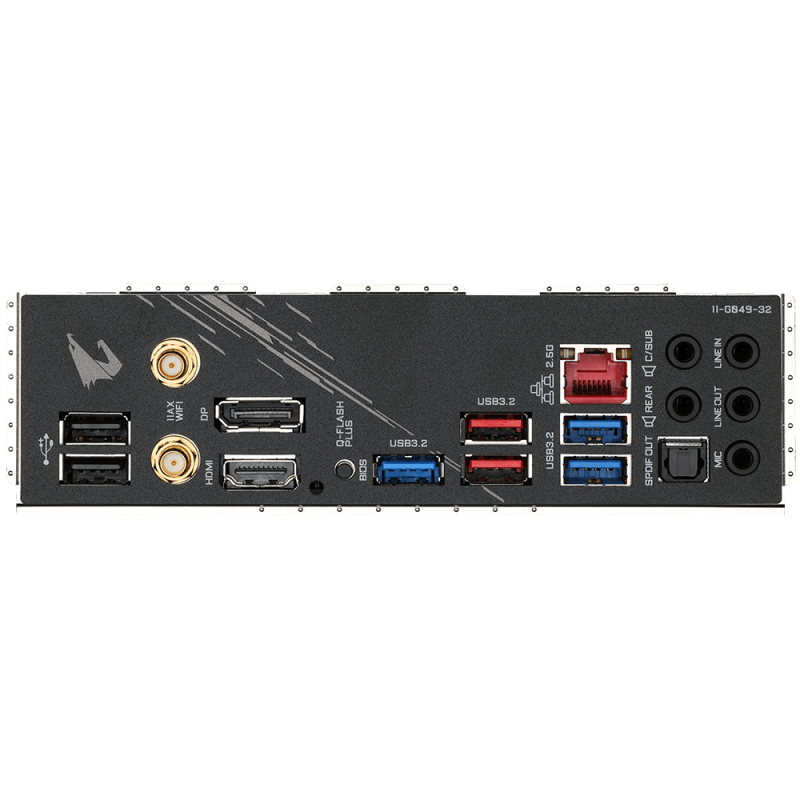

- Porturi video: Display Port , HDMI
- Iesire audio: 7.1
- Porturi USB 2.0, 3.0, 3.1 Type A, 3.1 Type-C: USB 3.2 gen 2 x 2 , USB 3.2 gen 1 x 6 , USB 2.0 x 6
