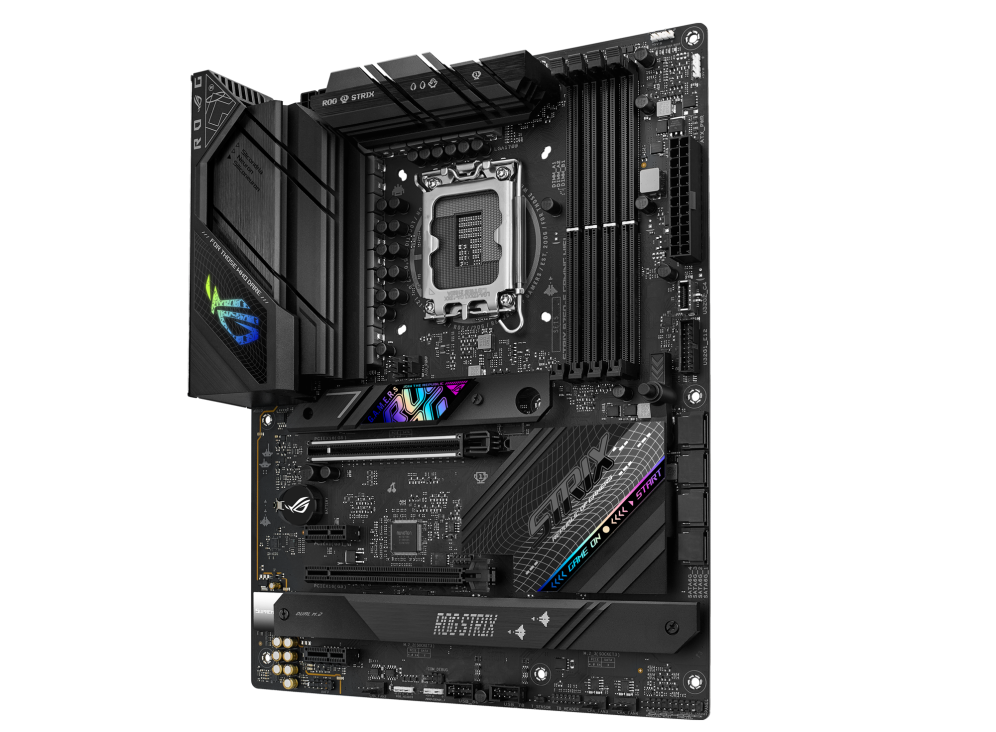

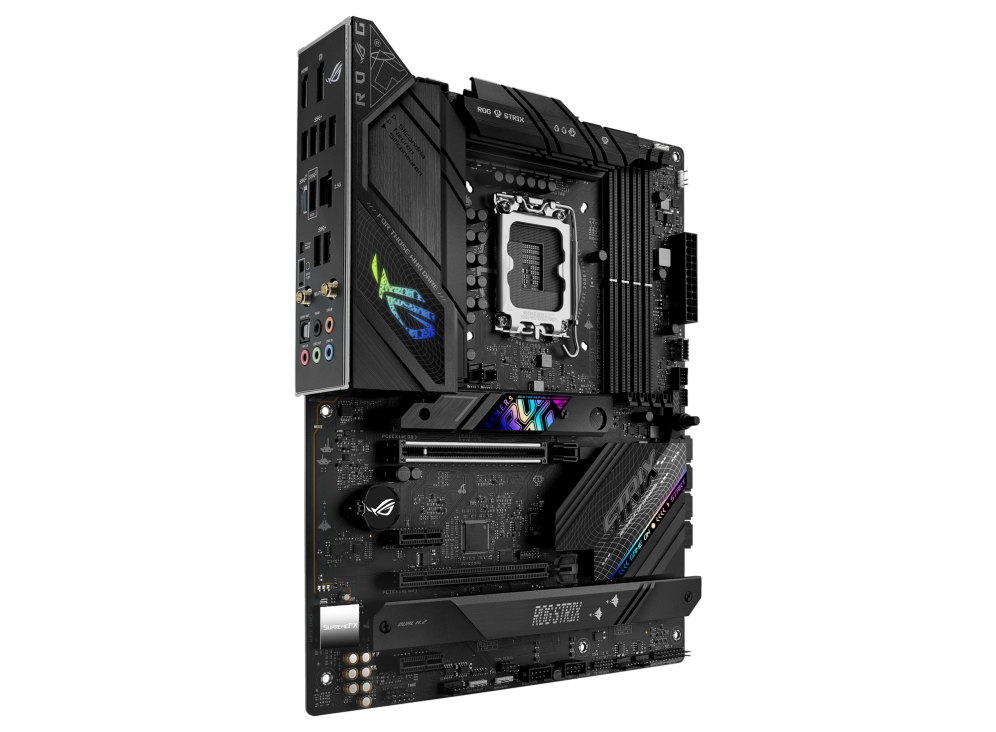

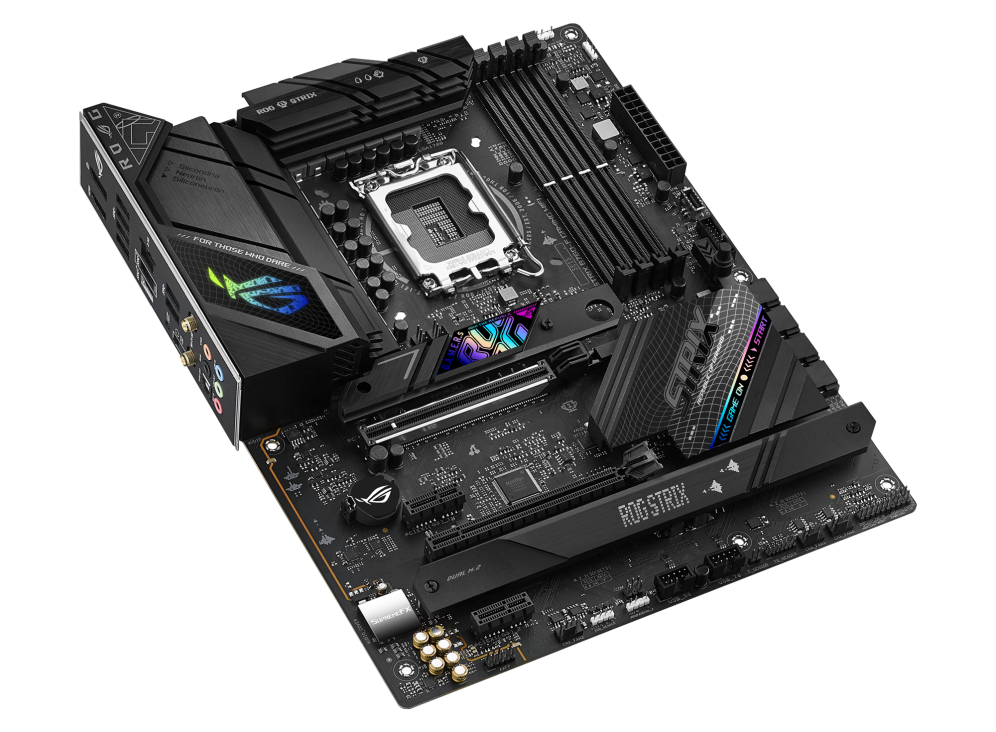

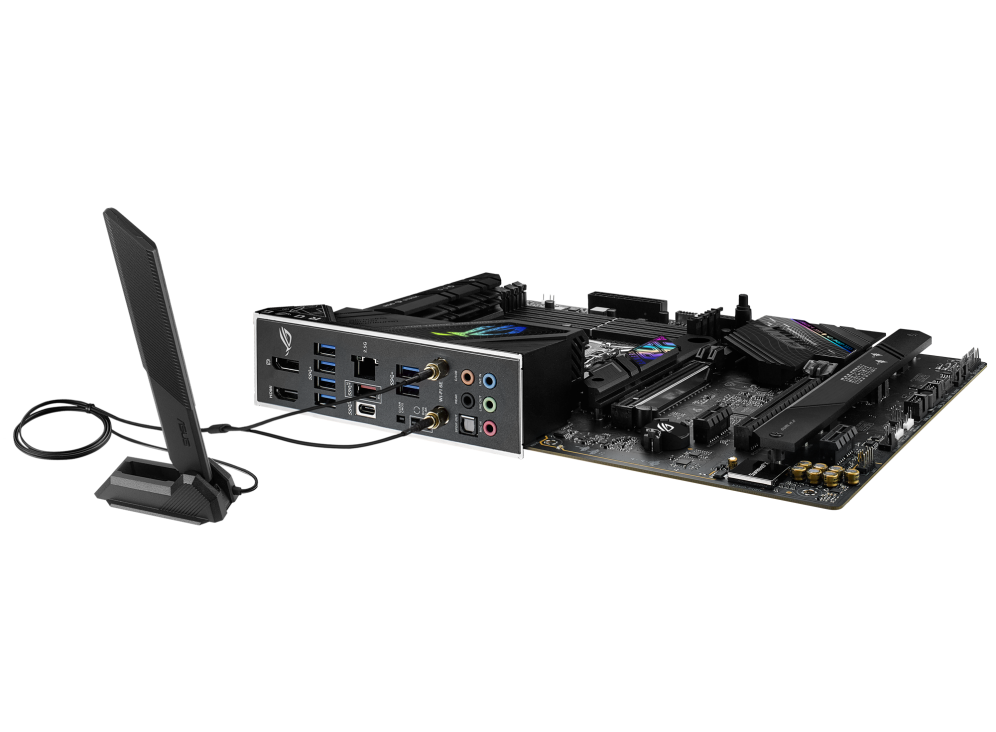

Placa de baza ASUS ROG STRIX B760-F WIFI LGA1700 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0×16 slot (supports x16 mode)** Intel® B760 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)*** 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Specifications
- CPU Socket: LGA 1700
- Format: ATX
- Chipset: Intel B760
- Tip memorie: DDR5
- Sloturi memorie: 4
- Capacitate maxima memorie RAM (GB): 192 GB
- Frecventa memorie (MHz): 5600 , 5400 , 5200 , 5000 , 4800
- Video integrat: Necesita CPU cu Intel HD Graphics
- LAN integrat: 10/100/1000/2500 Mbps
- Sloturi S-ATA 3: 4
- Sloturi M.2: 3
- Sloturi PCI-E x1: 1
- Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 3.0 x 4 x 1 , PCI-E 5.0 x 16 x 1
- Porturi video: Display Port , HDMI
- Iesire audio: 7.1
- Alte atribute: USB 3.2 gen 1 Type A x 6 , USB 3.2 gen 2 Type A x 1 , USB 3.2 gen 2 Type-C x 1
